Separation Suite for Hybrid and Conventional Printing
Introduction
Discover new possibilities in your print production with the enhanced Separation Suite from Ergosoft. Engineered to empower Computer-to-Plate (CTP), Computer-to-Film (CTF), and hybrid workflows, it supports screen, offset, flexo, pad, and gravure printing. Whether you're working with large-format inkjet or traditional printing methods, the Ergosoft RIP offers a powerful solution for streamlining color separation by automatically transforming any image or job into precise, print-ready separations.
Flexible Output Options:
Choose the method that fits your workflow.
- Direct Film Printing: Configure separations directly in JobComposer using the Separation Job toolset. Your image is automatically split into color channels upon import.
- File Interfaces: Output separated TIFF or BMP files for engraving machinery using a Print Environment that matches your file format requirements.
Hybrid Workflow Ready:
Effortlessly integrate digital and analog processes. Use Ergosoft’s advanced layout, composition, and job management tools to prepare your files for traditional printing without compromising quality or control.
Precision Control:
Customize every detail of your separations with Ergosoft’s high-fidelity AM (amplitude modulation) screening, from process or spot color channels to screen frequency, shape, and angle.
Process Profile Integration:
Use industry color production standards or import custom process profiles, either created with ColorGPS or any ICC profiling solution, to guide your separations.
Separation Printing: Key Innovations
Extra Channel Integration for Support of Special Inks:
The Extra Channel feature is now fully integrated into the Separation Job tool, allowing automatic generation of high-quality separations for special ink layers, such as white, pretreatment, or clear coatings for hybrid and traditional printing, no manual artwork preparation required. Further supported by:
- Smarter Extra Channel Handling for PSD and TIFF: Custom channel names are now recognized, streamlining workflows for special ink layers.
Substrate-Aware Color Conversion with Background Color Removal:
The Background Color Removal (BCR) – feature-pioneering in its category – is now fully compatible with Separation Jobs. It intelligently adapts separations to the substrate color and can automatically generate a matching white layer if needed. By integrating the substrate color directly into the CMM's color processing – rather than simply knocking it out – BCR reduces ink usage, boosts color vibrancy, and enhances tactile print quality.

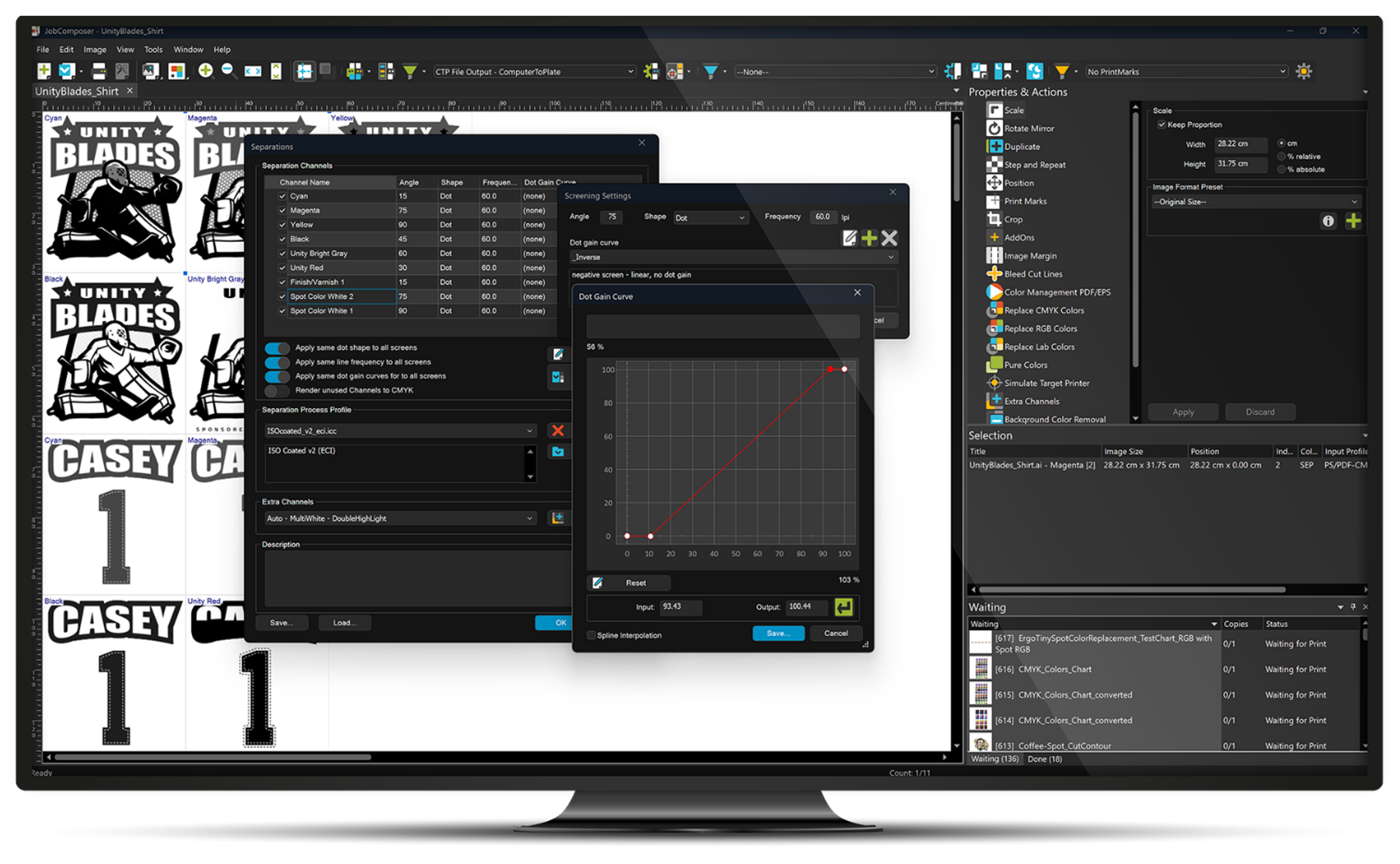

Revamped User Interface for Separation Job
This UI has undergone a comprehensive redesign, introducing:
- Dynamic grid controls enhance data interaction.
- Advanced curve editing tools for greater precision and usability.
- Resizable dialogs for improved layout adaptability.
These enhancements make the interface significantly more intuitive, flexible, and powerful.
Flexible Density Management:
Export density linearization data in a new text-based format compatible with external systems and Ergosoft’s Dot Gain import. This enables smoother calibration and better integration with third-party tools.
Dot Gain Curve Import:
Easily import density correction curves to generate Dot Gain Curves, with flexible downsampling options for fine-tuning and precision control.
Advanced Screening Control:
Autotype screening (AM) now dynamically adjusts dot size selection based on Print Environment settings, giving users more control over ink usage and print quality.
