Optimize Rendering Performance

Optimize Rendering Performance

Selecting the correct rendering resolution for PDF and EPS files is critical for achieving optimal print quality while maintaining efficient processing times and reasonable file sizes. The required resolution depends primarily on viewing distance, and content complexity.

Best Practice: PDF/EPS Rendering Resolution Based on Product Type and Viewing Distance

This article provides practical guidelines for choosing appropriate rasterization resolutions for common large‑format printing applications.

Practical Recommendations

  • Avoid over‑rendering: Higher DPI does not automatically mean higher visual quality.
  • Match resolution to content: Text‑heavy graphics require more resolution than photographic imagery at the same size.
  • Prioritize performance: Excessive resolution increases RIP time, memory usage, and spool sizes without improving output.
  • Test once, reuse often: Validate optimal settings per printer/media combination and standardize them.



Summary Overview

Viewing Distance

Typical Products

Recommended DPI

(< 1m / 3 ft)

Fine line art, small typography

Native printer resolution

2m / 6 ft

Posters, fine art, indoor use

200–300

2–4 m / 6–12 ft

Banners, wall graphics

100–150

> 4 m / 12 ft

Large banners, wraps

50–100

Billboards

Outdoor long‑distance viewing

20–72

 Choosing the correct rendering resolution ensures maximum visual quality, efficient RIP performance, and predictable production results.


Software Locations

The PDF/EPS rendering resolution and its related parameters can be configured in the following locations:

  • Image Context Menu → Interpreter Options…

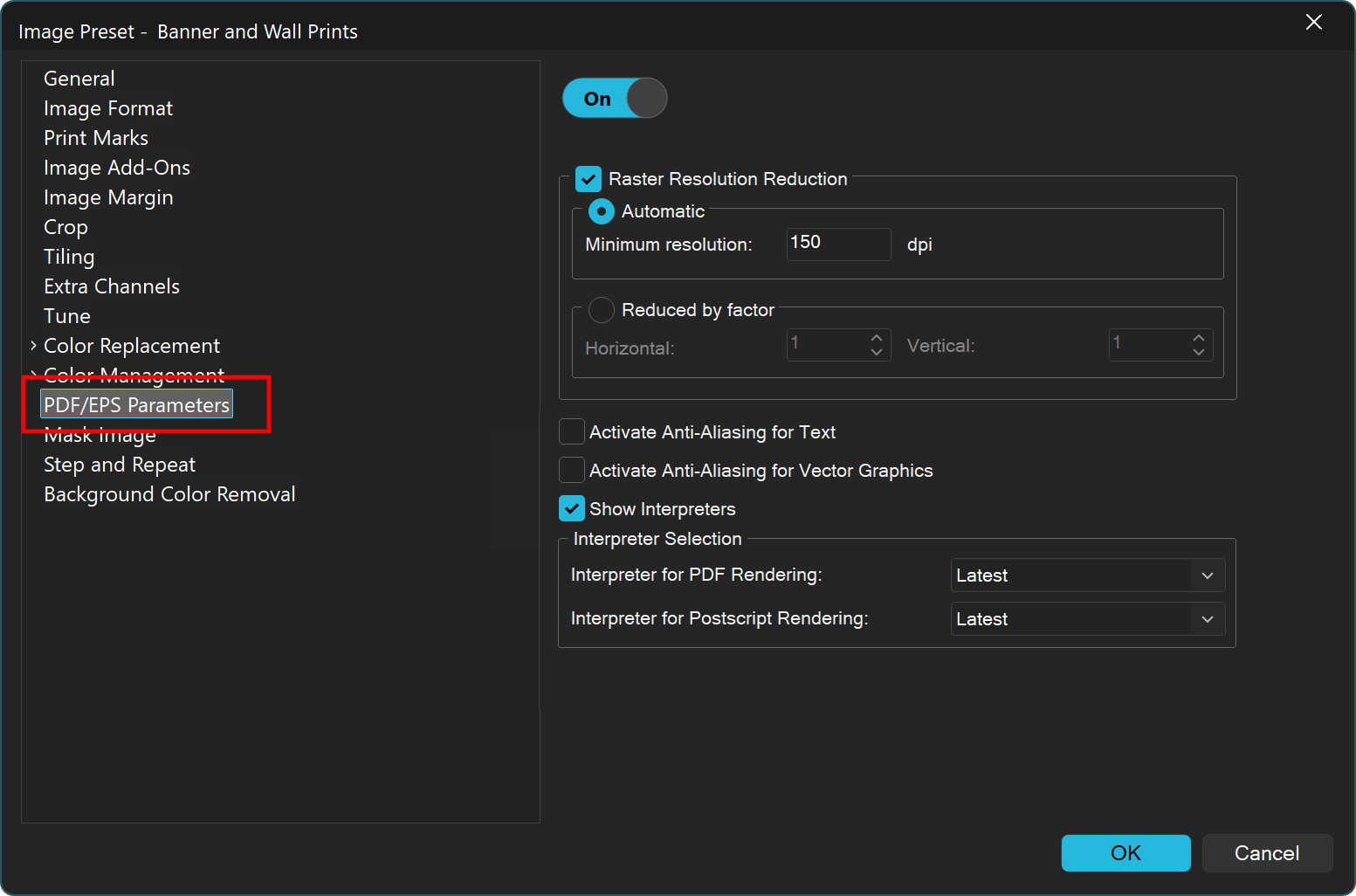

  • Composite Image Preset → PDF/EPS Parameters
  • Application Defaults → PDF/EPS Parameters


Use Image Presets based on viewing distance or product requirements

Important Technical Behavior

The Raster Resolution Reduction mechanism operates exclusively using integer reduction factors.
This means that the native printer resolution is divided by whole numbers only (e.g. ÷2, ÷3, ÷4), never by fractional values.

Examples

Print Environment

X-Resolution

Print Environment

Y-Resolution

Raster Resolution

Reduction Setting

Effective Rendering

X-Resolution

X-Reduced

By Factor

Effective Rendering

Y-Resolution

Y-Reduced

By Factor

360 dpi

2440 dpi

150 dpi

180 dpi

2

152.5 dpi

16

299 dpi

301 dpi

150 dpi

299 dpi

1 (not reduced) *

150.5 dpi

2



Important Constraint

If a minimum rendering resolution is defined (e.g. 150 dpi), the reduction factor must not result in an effective resolution below this minimum.

In the second example:
  1. Dividing the X‑resolution (299 dpi) by a factor of 2 yields 149.5 dpi
  2. This falls below the user‑defined minimum of 150 dpi
  3. Consequently, the X‑resolution is not reduced *, while the Y‑resolution can still be reduced safely

This explains why raster reduction may apply asymmetrically or be skipped entirely, even when a reduction target is configured.




Key Concepts in Details

  • Rendering Resolution (DPI/PPI)
    The resolution at which vector (and/or raster content within a PDF/EPS) is rendered during RIP processing. Higher values improve detail but increase processing time and memory usage.
  • Viewing Distance Rule
    Human visual acuity decreases rapidly with distance. As a result, very high resolutions provide no visible benefit for large graphics viewed from afar.
  • Native Printer Resolution
    The internal resolution of the printer defined in the Print Environment (e.g., 600 × 600 dpi, 1200 × 1200 dpi). Using it directly produces the highest possible fidelity but is often unnecessary for large-format viewing distances.



These widely adopted industry guidelines outline recommended rendering resolutions by viewing distance, helping balance image fidelity, file size, and RIP performance.

Info
Close Viewing: Under 2 m /6 ft

Recommended resolution: 200–300 DPI

Typical applications:
  1. Posters
  2. Fine art prints
  3. Trade show panels
  4. Indoor signage with readable text

Rationale:
Ensures crisp fonts, smooth gradients, and clean edges that can withstand close inspection.


Info
Medium Viewing: 2–4 m / 6–12 ft

Recommended resolution: 100–150 DPI

Typical applications:
  1. Roll‑up banners
  2. Wall graphics
  3. Retail displays
Rationale:
Balances image quality and performance while remaining visually indistinguishable from higher resolutions at this distance.


Info
Distant Viewing: Over 4 m / 12 ft

Recommended resolution: 50–100 DPI

Typical applications:
  1. Large banners
  2. Stage backdrops
  3. Building wraps

Rationale:
Fine details are no longer perceptible, making higher resolutions unnecessary.


Info
Very Large Format / Billboards

Recommended resolution: 20–72 DPI

Typical applications:
  1. Roadside billboards
  2. Stadium displays
  3. Outdoor advertising viewed at long distances

Rationale:
At extreme viewing distances, even low resolutions appear visually sharp. Using higher values offers no practical benefit and significantly increases RIP load.


Warning
Maximum Quality Mode (No Raster Resolution Reduction)

Recommendation:
Disable raster resolution reduction entirely. Allow the RIP to render at the native printer resolution defined in the Print Environment.

Use cases:
  1. Fine line art
  2. Small typography
  3. High‑detail vector graphics
  4. Technical drawings or close‑inspection prints

Notes:
  1. This mode maximizes detail and edge sharpness.
  2. File processing time and memory usage will be significantly higher.
  3. Recommended only when required by content or quality standards.
