Roland VersaUV LEC2 Series Double Side Layer Printing

Roland VersaUV LEC2 Series Double Side Layer Printing

This document gives an introduction into configuring a Print Environment of an Roland VersaUV LEC2 Series to print double side layer jobs, using different images on the top layer and bottom layer areas.


Add and Configure Roland VersaUV LEC2 Series

  1. Add a Print Environment based on either
    1. Either: Roland VersaUV LEC2-300
    2. Or: Roland VersaUV LEC2-330
    3. Or: Roland VersaUV LEC2-640

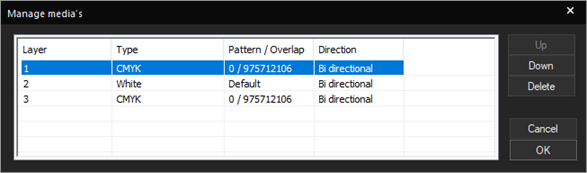

  2. Configure at least three layers and define their print modes (Two color layers and one white layer are required.).


Activate the Double Sided Job mode option (Options tab > Top right).


Activate Mirror for the layers required.




Create A Double Side Layer Job

The example uses one image each for top and bottom layer only. It is possible to use several images per layer, as long the position and size requirements are fulfilled.


Top Layer and White Layer
  1. Create a new Job (activate the correct Print Environment)

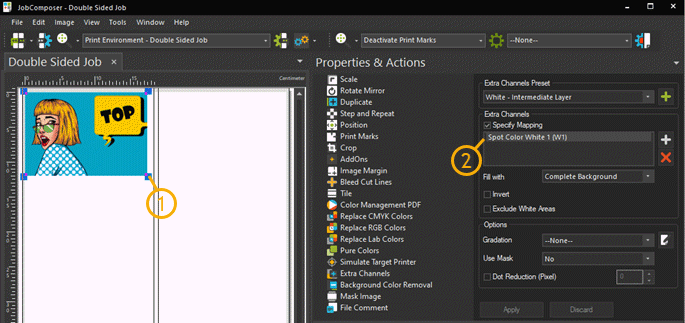

  2. Import the top layer image (1).
    1. Position it top left.
  3. Create the intermediate white layer with Extra Channels (2).
    1. Use Complete Background.
    2. Use no mask.

Additional recommendations:
  1. Use Image Presets to automatically deactivate Print Marks (if not needed).
  2. Use Image Presets to autoscale images of the top and bottom layers to the exact same sizes.
  3. Use Image Property Preset *Extra Channels* to quickly generate and assign the white layer.

Bottom Layer

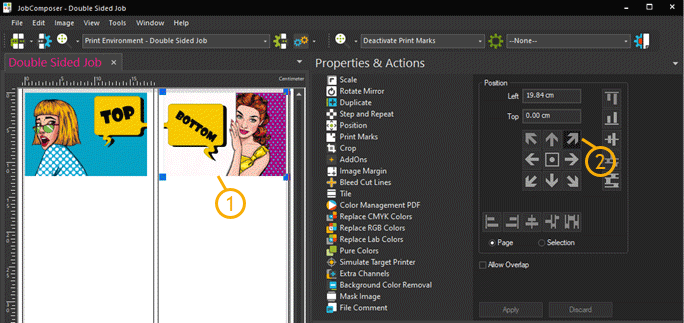

  1. Import the bottom layer image (1).
    1. Position it top right.


Note: Do not use any white layer generation on the bottom layer. It will be ignored.


Double Side Layer Job - Print Order

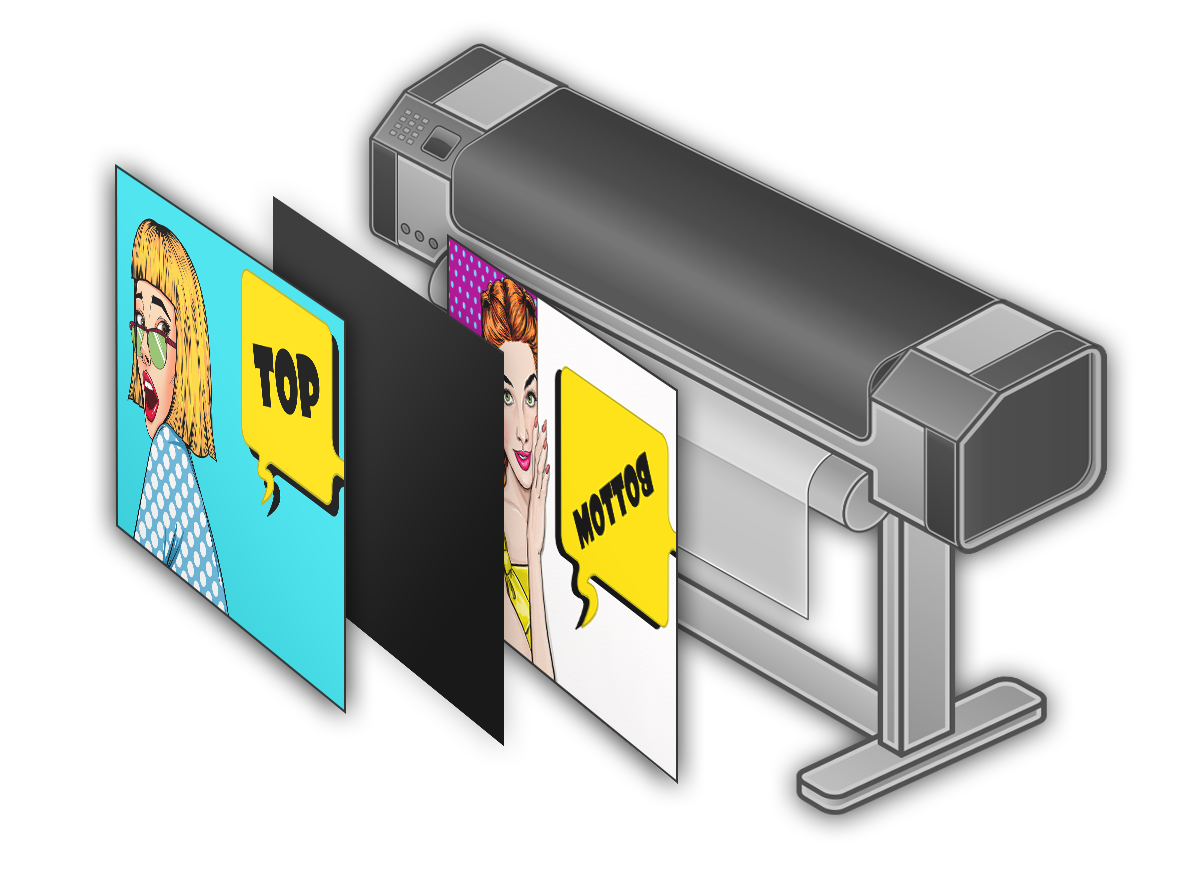

The described example double-sided Job will lead to the following output.



Double Side Job Layout

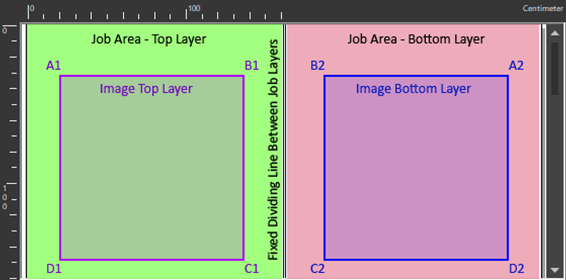

This drawing shows the two job areas, the fixed dividing line and how the mirroring of the bottom job (images) is being done.
